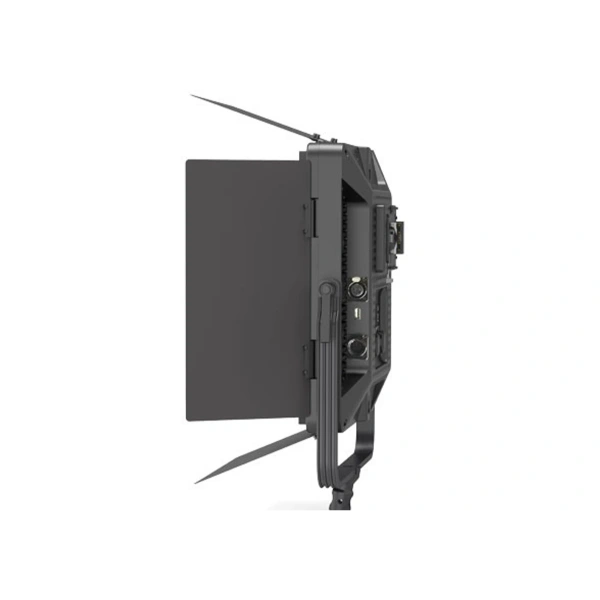

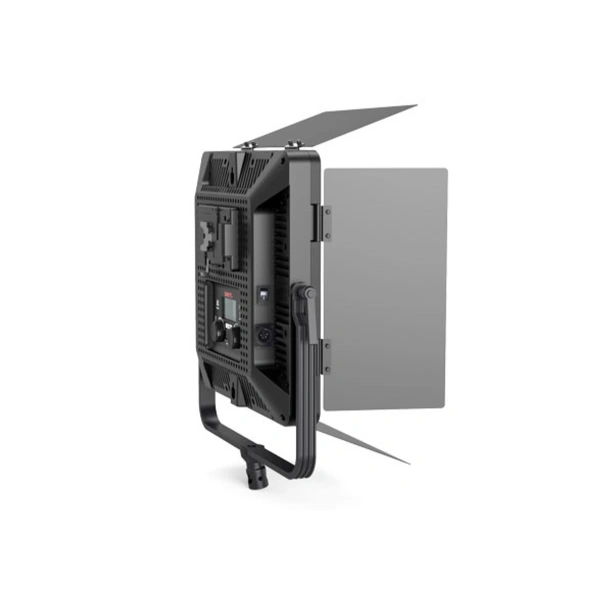

CL-M100D is an 100W Bi-color SMD LED panel light of 1: 1/2 mini size designed, high intensity and fanless, for broadcast studio, live entertainment, theater, film applications, especially the low ceiling space setup.
CL-M100D adopts 576pcs SMD LEDs, featured: (1) higher uniformity of illuminance;
(2) wider beam angle;
(3) higher color rendering index;
(4) Softer and Brighter;
(5) longer life time,
an ideal light source for Broadcast studios, green keyer, live streaming etc.
CL-M100D provides 100W light output, 3400Lux luminance at 1 meter distance, 62° half-peak wide beam angle, supports 0 to 100% PWM digital dimming, smoothly and non-flickering.
The large size fin consender inside CL-M100D ensures 100W high bright output within such a small size housing, no fan, no noise, to provide a silent video production environment.
CL-M100D consists of 100W of 2700K LED and 100W of 6500K LED, and outputs 100W power at any color temperature from 2700K to 6500K.
CL-M100D adopts high end surface mounted LEDs with super high Color Rendering Index (CRI) Ra 98, and Television Lighting Consistency Index (TLCI) 99. Objects will keep their original colors exactly under the light.

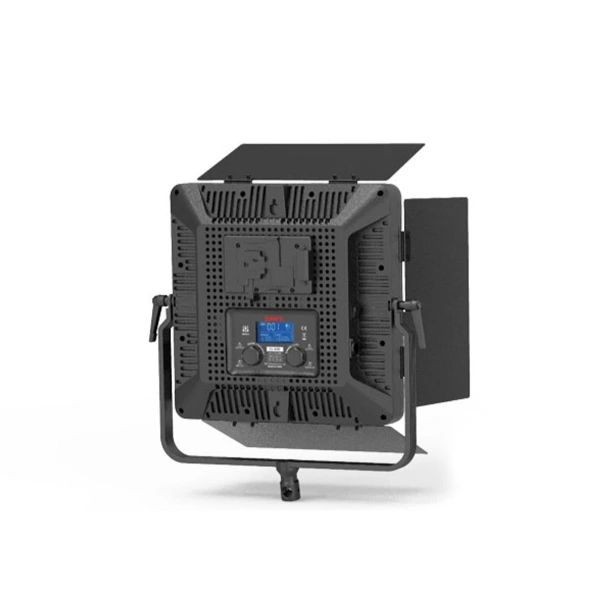

The rear LCD screen can display dimmer percentage, color temperature, DMX address, Group channel (CH), and power indicators.
Long press color temp knob to set DMX address, and long press dimmer knob to switch between DMX consoler mode and Group interactive control mode.
CL-M100D provides 5-pin XLR DMX512 in & out, and a 5V USB-A port to power the wireless DMX receivers.
The DMX address n= dimmer, n+1=color temp
CL-M100D adopts PowerCON TRUE1 AC connectors, and supports AC loop output to the next lights, for convenient studio installation. The standard package includes a PowerCON AC cable, and the loop cable PA-LC20 is for optional purchase, 2 meters length, 16A load, will loop more than 25x CL-M100D lights under 220V AC voltage, and 13x CL-M100D lights under 110V voltage.
With optional battery plate clamps and D-tap cable, you can power the CL-M100D light by V-mount or Gold mount batteries via the 4-pin XLR DC in socket.
