מיני-ISO כולל ארבע כניסות 4K HDMI וארבע כניסות SDI, תומכים באותות ממחשב, מחשב נייד, מצלמה ועוד. גם אודיו ברמת קו וגם ברמת המיקרופון נתמך על הסיפון עם פקדי השהיה משתנים כדי לסנכרן את האודיו במידת הצורך. תמיכה ביציאות HDMI כפולות לניטור של תצוגה מקדימה מרובת צפייה.

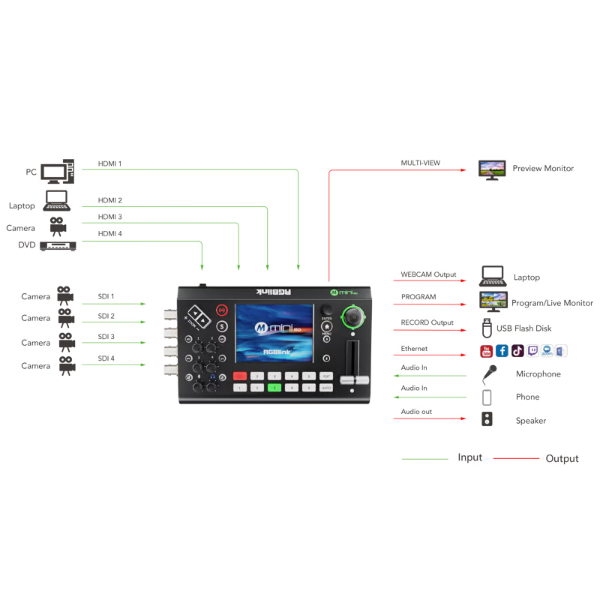

mini-ISO features four 4K HDMI inputs and four SDI inputs, supporting signals from PC, Laptop, camera and more. Both Line and Mic level audio supported on aboard with variable delay controls to bring audio into sync if needed. Dual HDMI outputs support for monitoring of multi-view Preview, Program or Test Pattern. One USB output supports YUY2 and MJPEG encoding formats, which can be recognized as webcam for streaming to Facebook, YouTube, ZOOM, etc.

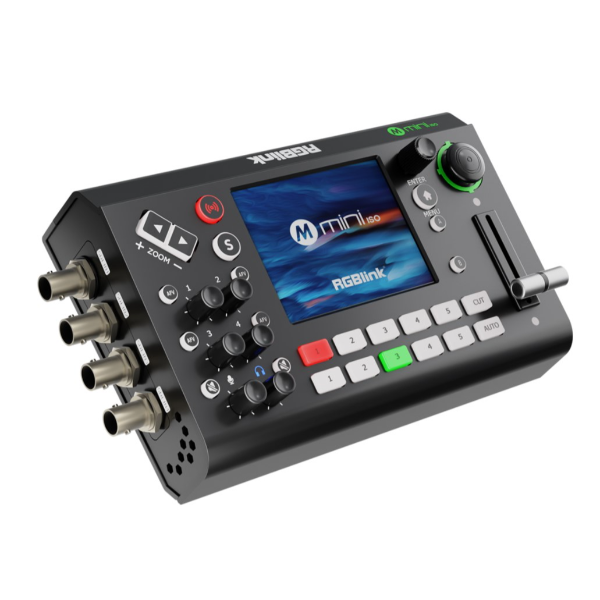

mini-ISO is built with 3.5-inch TFT touch screen for menu operation and video sources display. mini-ISO is packed with features including dynamic output control, multi-view preview, picture in picture, chroma key, transitions, on board PTZ camera controls and much more.
mini-ISO supports TAO Cloud integrated control, simultaneous streaming to 4 live streaming platforms via RTMP(s).
Key Features
mini and is convenient to carry
Quad SDI inputs supports signal from PC, camera,etc

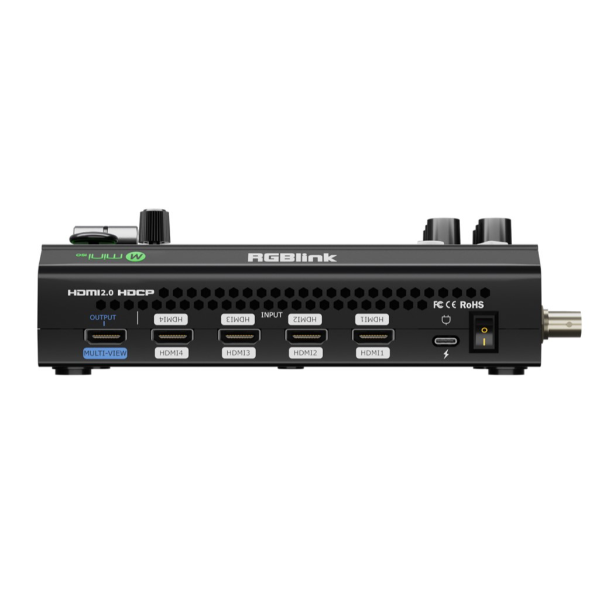

Quad HDMI 2.0 inputs (HDCP 1.4 compliance), resolutions up to 4K@60
3.5-inch touch screen for menu operation, signal preview and working status display
Dual HDMI 1.3 outputs for monitoring of multi-view Preview, Program or Test Pattern
Mix for 4-channel HDMI/SDI embedded and 2-channel external audio
USB 2.0 one-key recording in exFAT or FAT32 format with bitrate up to 16Mbps
USB output supports YUY2/MJPEG format, which can be recognized as webcam for streaming
AUTO and WIPE Switch mode available
15 transition effects
5-direction joystick and toggle for controlling PTZ camera (IP VISCA Protocol supported)
TAO Cloud control, compatible with mobile devices and desktop
Support RTMP(S) network streaming up to 4 platforms
Specify either “green” or “blue” as the key color for Chroma Key
Save and load PTZ presets. One-click for preset recall
