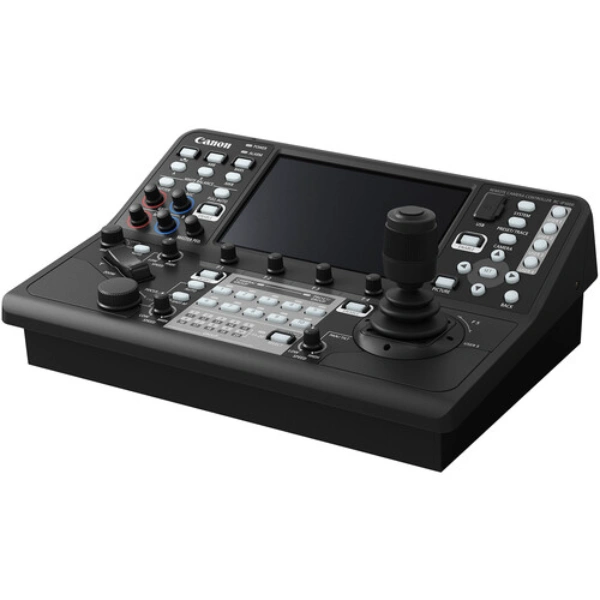

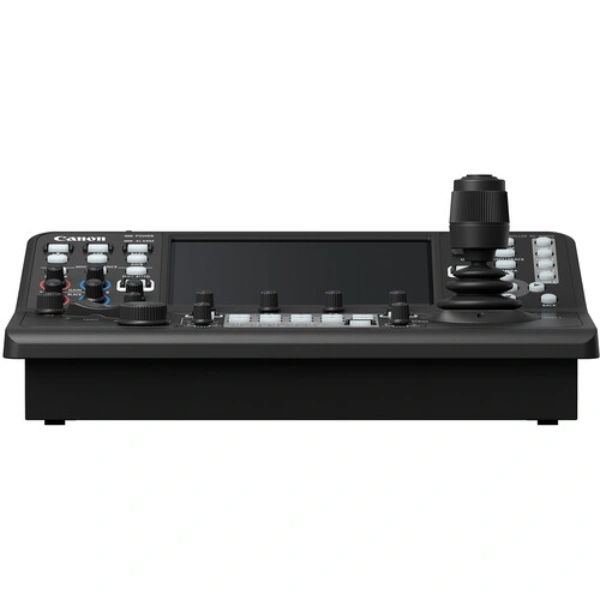

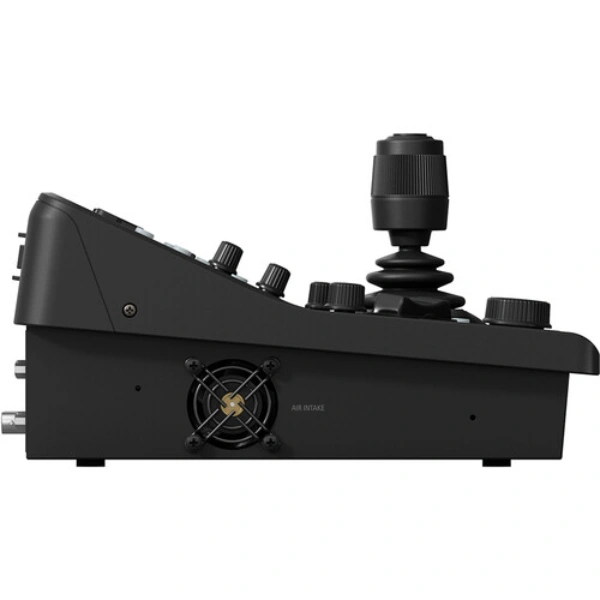

בקר שליטה קונטרולר Canon RC-IP1000 Touchscreen PTZ Joystick Controller
שליטה וניטור של עד 200 מצלמות באמצעות בקר PTZ מקצועי זה עם מסך מגע רב תכליתי בגודל 7 אינץ', ג'ויסטיק ארגונומי ורוקר זום בתוספת לחצנים וחוגות לשליטה מדויקת.
26,699.00 ₪
אפשרויות איסוף ומשלוח:
◉ איסוף בחנות ראש העין - נא לתאם הגעה - 0 ש"ח
◉ משלוח לנק' איסוף - 3-7 ימי עסקים - 25 ש"ח
◉ משלוח לבית הלקוח - 3-7 ימי עסקים - 50 ש"ח
Tactile precision, professional control

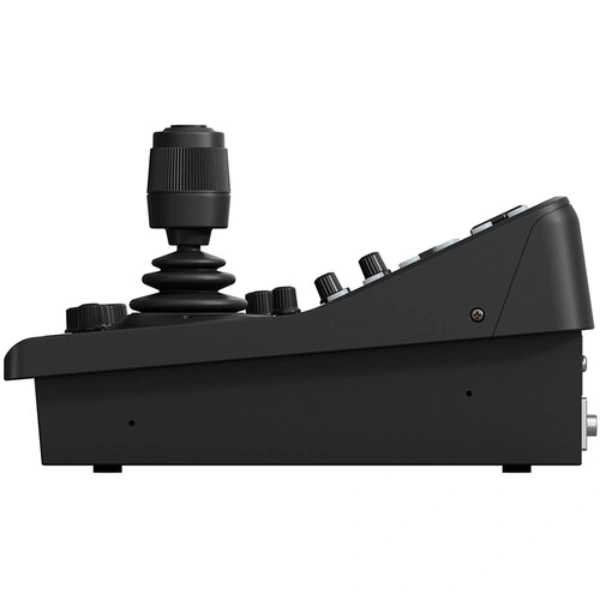

Fine-tune PTZ camera movements using the ergonomically designed joystick, designed to fit comfortably into the palm of your hand for intuitive twisting control. A customisable button on the top allows even greater versatility such as One Shot AF and Return to Home position.
Multiple physical buttons and dials

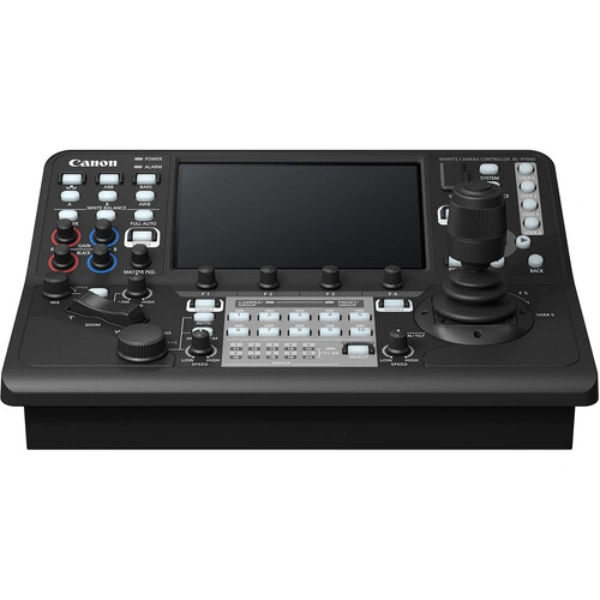

Control connected cameras thanks to 42 buttons and 14 dials that control functions such as Iris, Gamma, Knee and white balance. Backlit LEDs help general visibility while the professional zoom rocker ensures pinpoint accuracy when adjusting the zoom.
IP Video and Input Monitoring
Monitor and control Canon camera feeds quickly and easily on the 7-inch touchscreen via IP with up to nine being viewable at once in various layout options. Whatever camera is chosen, the touchscreen will automatically switch to show that live feed. Alternatively, output one full-screen feed to an external monitor via the 12G-SDI or HDMI port.
Easy set up without a PC
Use the RC-IP1000’s camera search function to find and register new cameras via the LAN. RC-IP1000 can change all system settings of up to 200 connected cameras such as IP address, ID, and password. It can also perform initial setup of camera and controller without a PC.
Multi-camera control made easy
Group all cameras together or up to ten in one group. Implement presets for multiple PTZ cameras at once as well as control others from Canon’s PTZ and Cinema EOS1 ranges, plus the XF605 Pro Camcorder.
Intuitive touchscreen
Access a wide range of settings via the touchscreen. Set Focus Points and settings within touch AF, Face and Eye detection; control Manual Focus Point and adjust crop areas to enable two feeds to be sent out from one camera2.
Professional inputs and connections

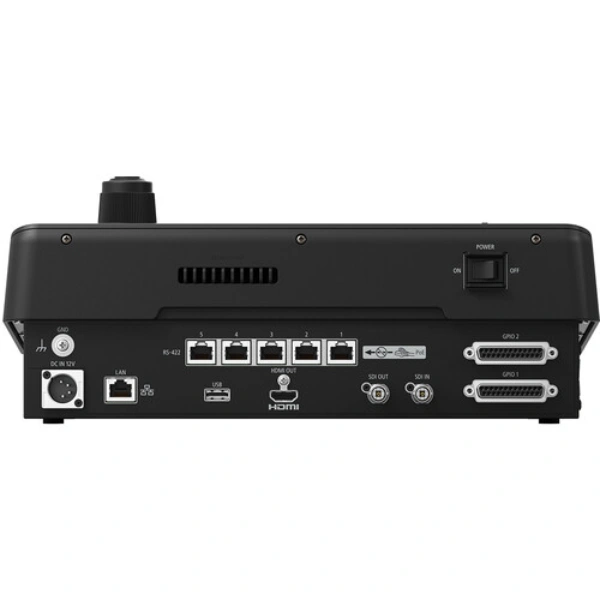

Incorporate the RC-IP1000 into existing infrastructures or use remotely thanks to a wide range of inputs including DC 12V XLR port, five Serial RJ45 ports, LAN/POE+, USB, HDMI Out, 12G-SDI in/out and two GPIO D-Sub 25pin channels. By using the GPIO/SDI connection with a video switcher, the selection of camera on RC-IP1000 can perfectly link with the selection of camera on video switcher automatically.
Advanced Pre-Set and Trace control
Control another camera during a trace and set your other camera positions without having to wait until the trace/pre-set is finished. Register and manage presets and traces by naming them via the touchscreen and use the physical button on the RC-IP1000 for quick access to the pre-set and trace.
Specifications
-
IP Video and Input Monitoring
Monitor and control up to 200 cameras.
-
PC-less Set-up of cameras
Register and system setup of cameras without PC.
-
Professional Inputs and Outputs
HDMI Out, 12G-SDI in/out, Serial RJ45, LAN/POE+, two USB ports and two GPIO D-Sub 25pin channels.
-
Multiple physical buttons and dials
For professional control and setting adjustments.
-
High quality joystick and zoom rocker
Ergonomic, comfortable design.
-
7-inch touchscreen
View feeds plus adjust AF settings, crop areas and more.
-
Multiple camera control
Control multiple cameras by grouping them.
-
Arrow Buttons
Easy menu navigation.
-
Advanced Pre-Set and Trace control
Control other cameras during trace. Easy access to preset by physical button/touch screen.
Specifications in detail
General
-
Power supply (adapter)DC12V
-
Power supply (PoE)Yes (PoE+)
-
Exterior dimensionsW 342 mm x H 115 mm x D 245 mm
(excluding controller level, protruding parts) -
Weightapprox. 3.5 kg
-
Operating Temperature0°C – 40°C
-
LCD Display7-inch touch panel
-
Supported protocolsXC protocol (IP)
NU protocol (serial)
Connection specs
-
No. of connectible cameras200 (IP), 5 (Serial)
-
No. of camera groups20 (10 units per 1 group)
Inputs/Outputs
-
Power SupplyXLR-4pin (10.8 to 20V)
-
Video input/output
IP IN (video switch with camera selection; 2×2/3×3 multi-camera video display)
12G-SDI IN/OUT (2K/4K, no additional information such as audio/TimeCode except through-out)
HDMI OUT (2K, no additional information such as audio/TimeCode)
-
Serial InterfaceRJ45 x 5
-
Tally/GPIOD-sub 25pin x 2
-
Video display on touch panelYES (SDI IN/IP)
-
Touch focus from screenYES (SDI IN/IP)
-
USBUSB Type A x 2 (for saving settings data, firmware update)
Memory
-
PresetUp to 100 for each camera (depends on camera specs)
-
Hard button support for presetsYes (used with camera number buttons)
-
TraceUp to 10 for each camera (depends on camera specs)
Control Panel
-
Menu operationYes (touch panel or arrow button and SET/BACK buttons)
-
No. of user buttons5 (USER1 to USER10 can be controlled from the touch panel)
-
Touch focus from panelYES (SDI IN/IP)
-
No. of camera Selectable Buttons10 (usable as preset select)
Others
-
Initial camera settings without PCYES
-
Simultaneous multi-camera setupYES
